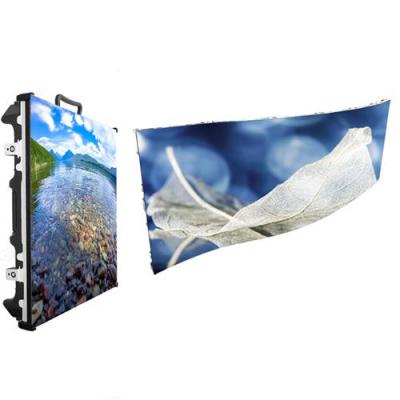

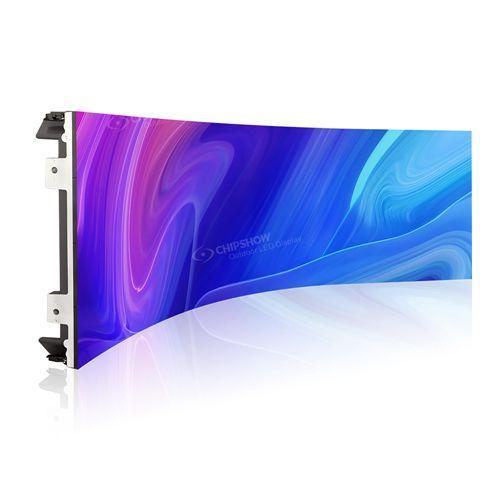

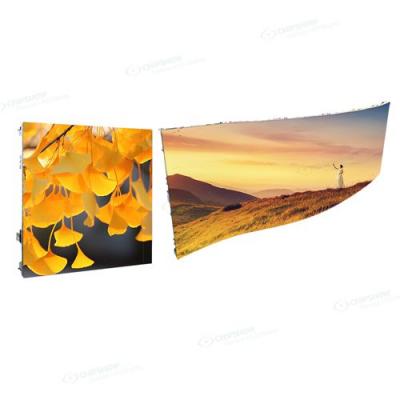

C-Arc curved LED Display (P2.6) - indoor event screen

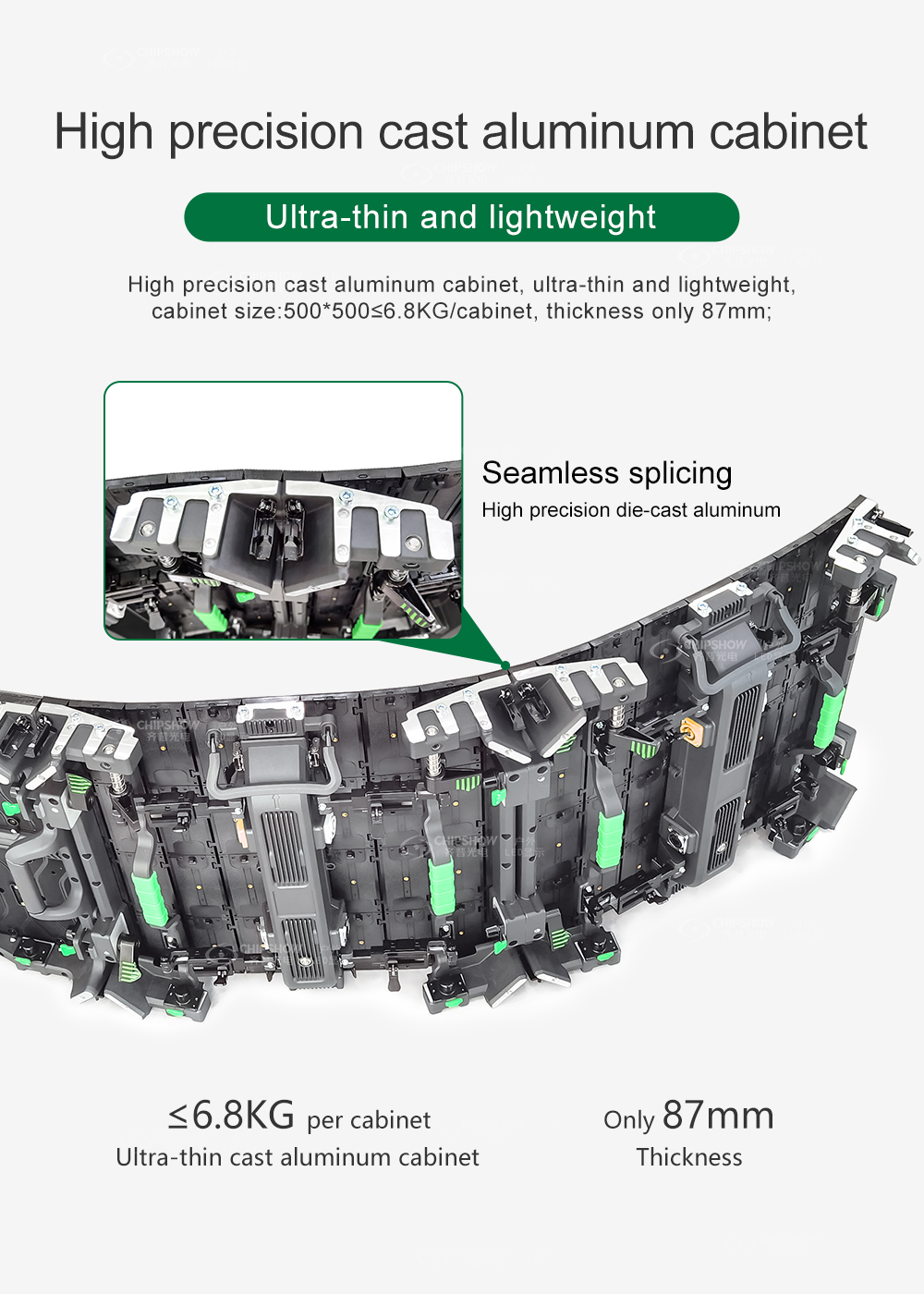

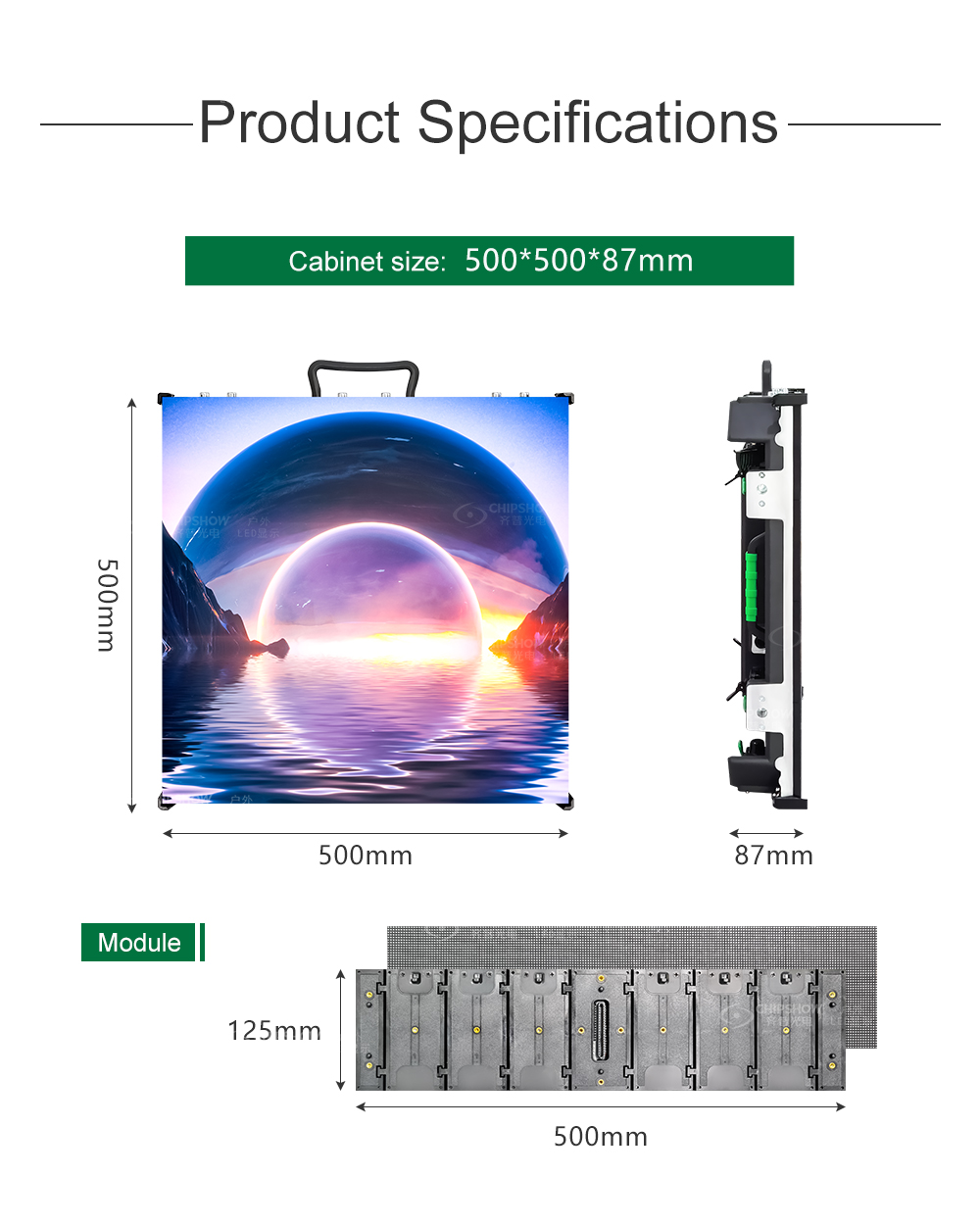

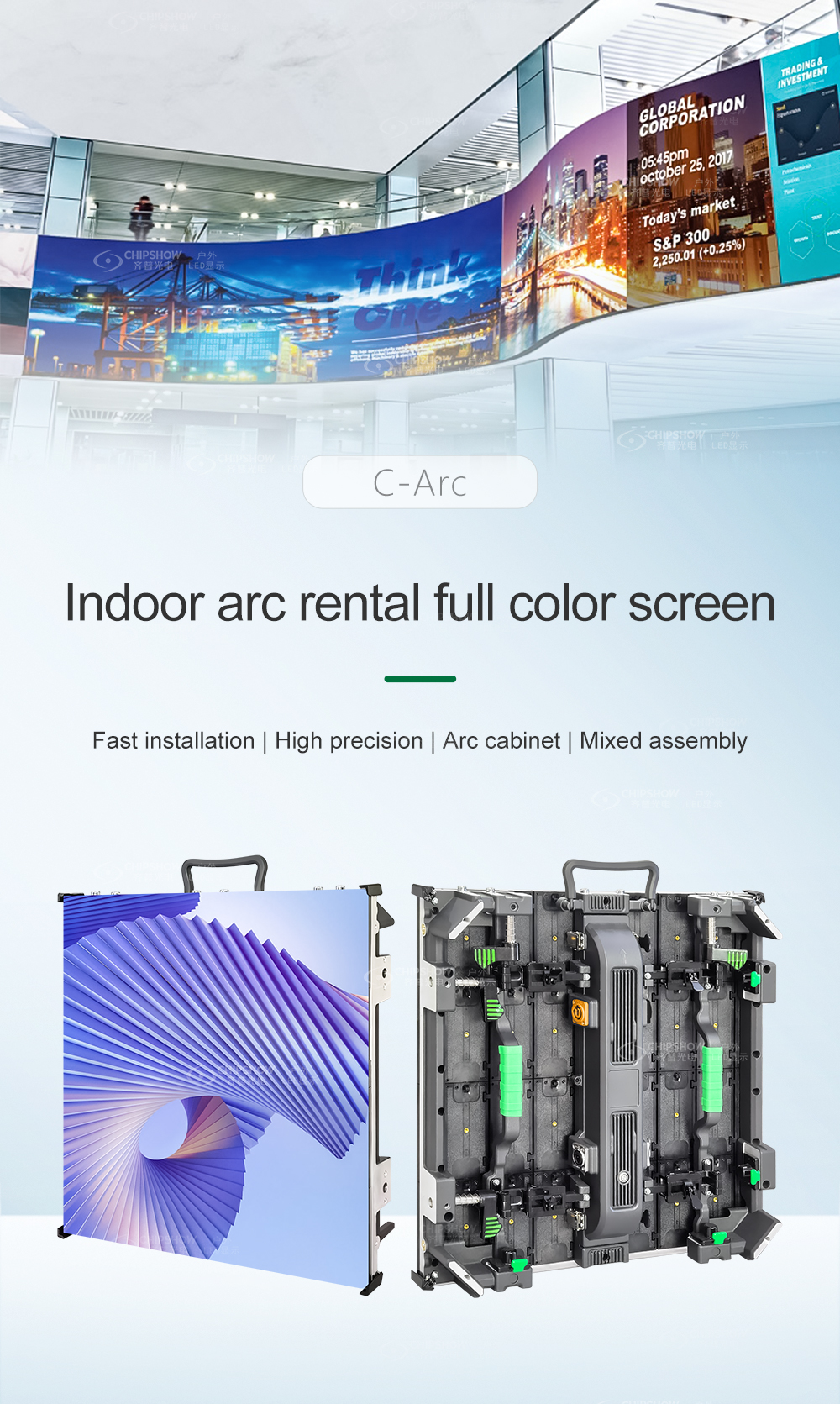

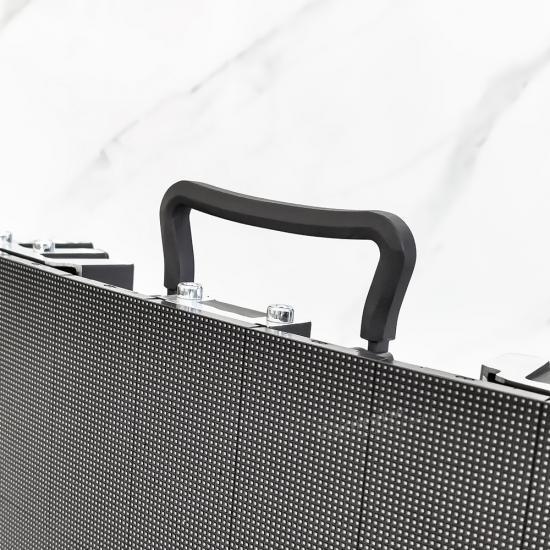

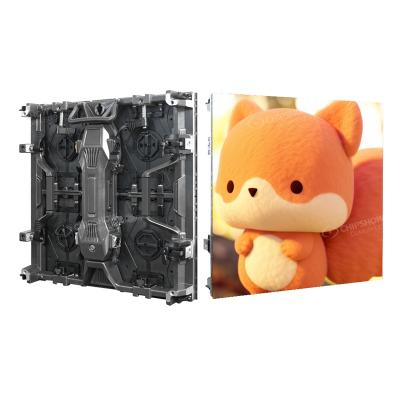

1 The C-Arc series adopts high-precision, aluminum die-casting cabinets that feature thin thickness, high strength, and low weight (cabinet size: 500*500mm, weight: ≤6.8KG/cabinet, thickness: 87mm );

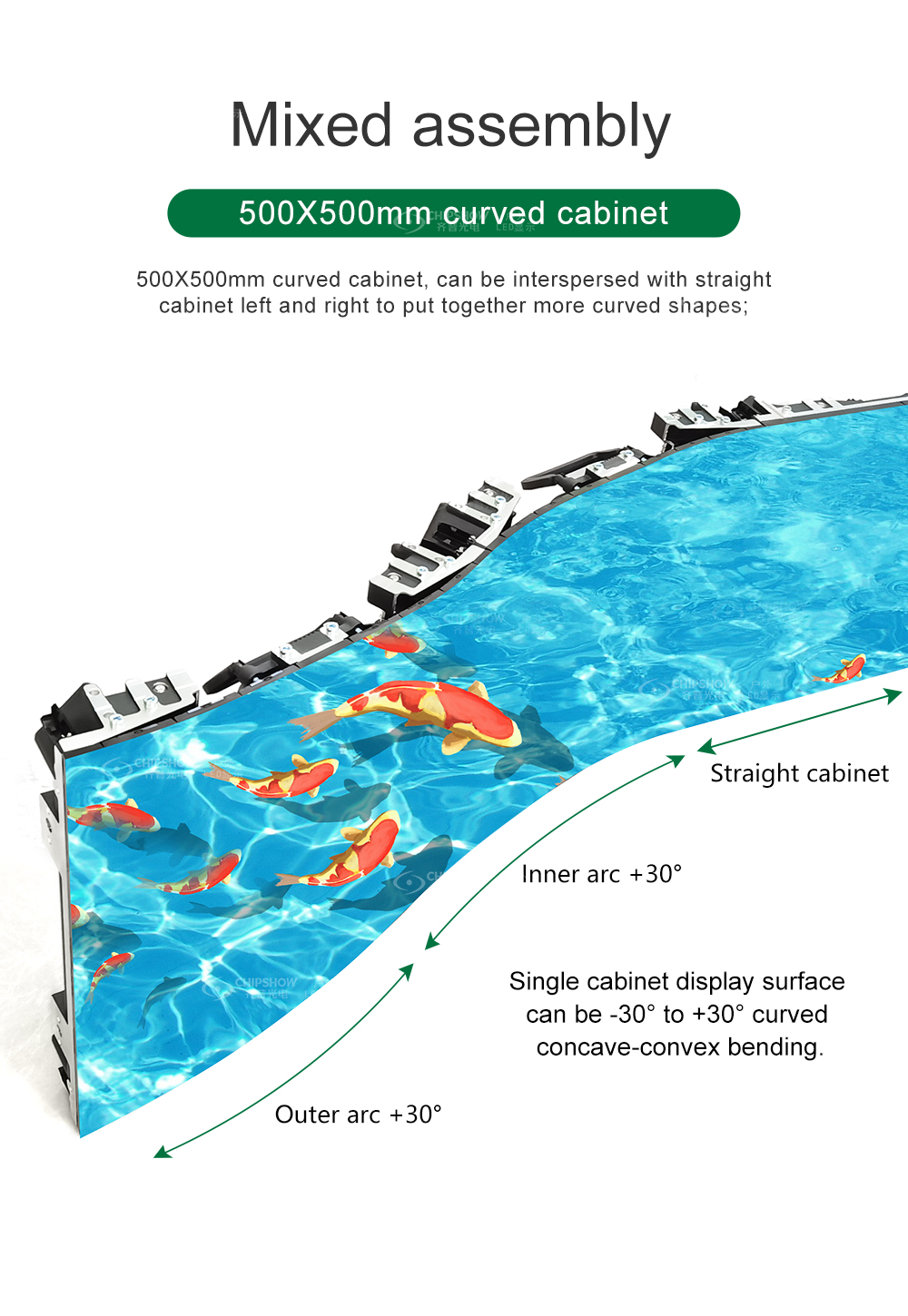

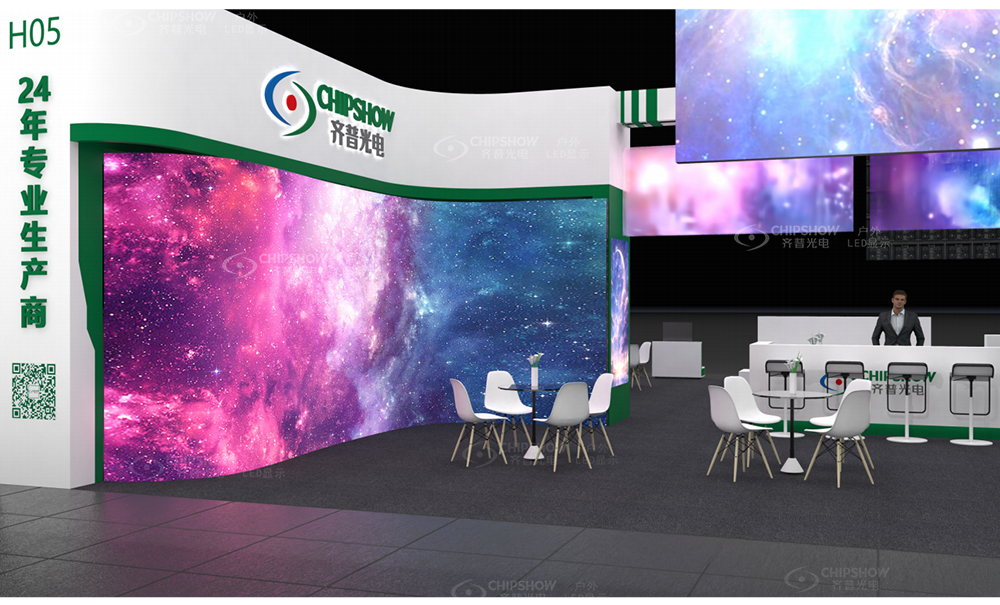

2 As a typically curved display solution, the C-Arc series can be interspersed with other models of our LED screens (“C-Shine, C-Shine-Plus”) to create more complicated shapes;

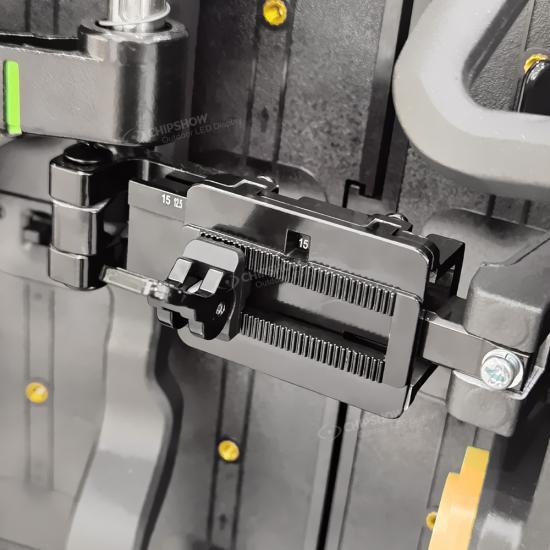

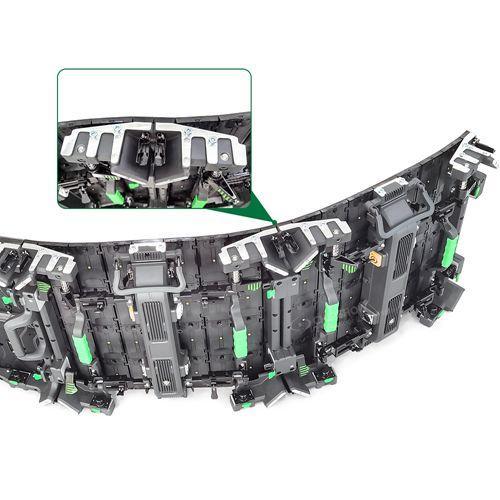

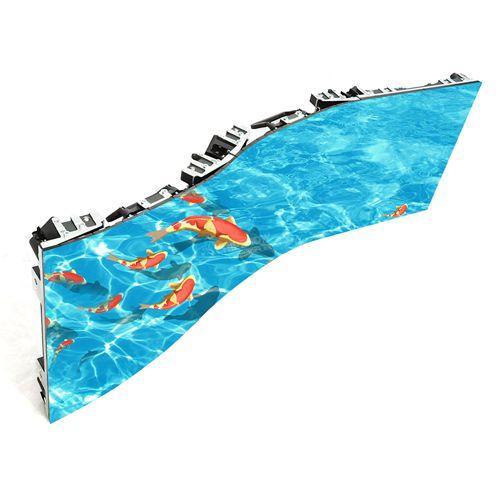

3 The concave and convex angles that a single cabinet can bend with reach up to 30°；

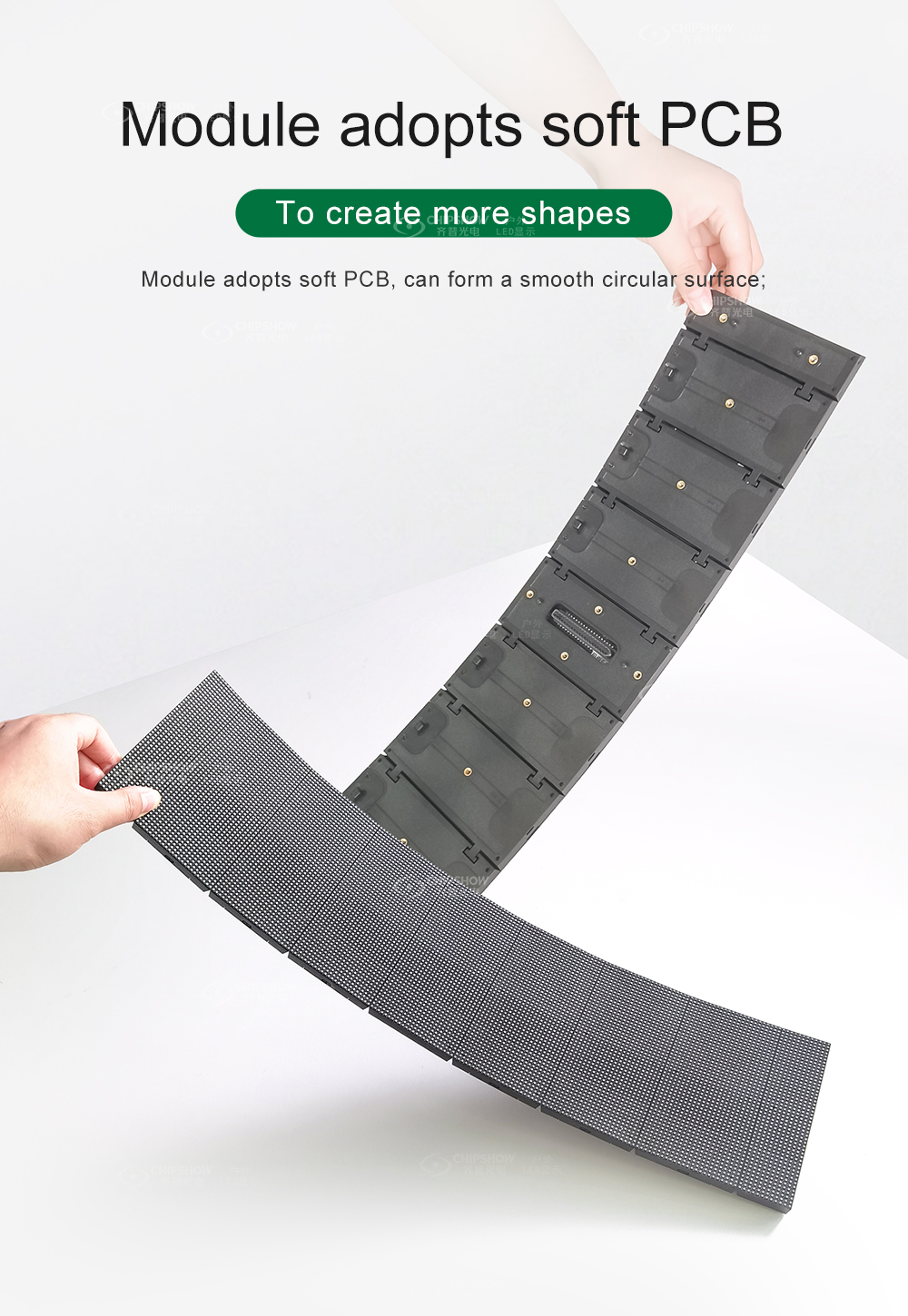

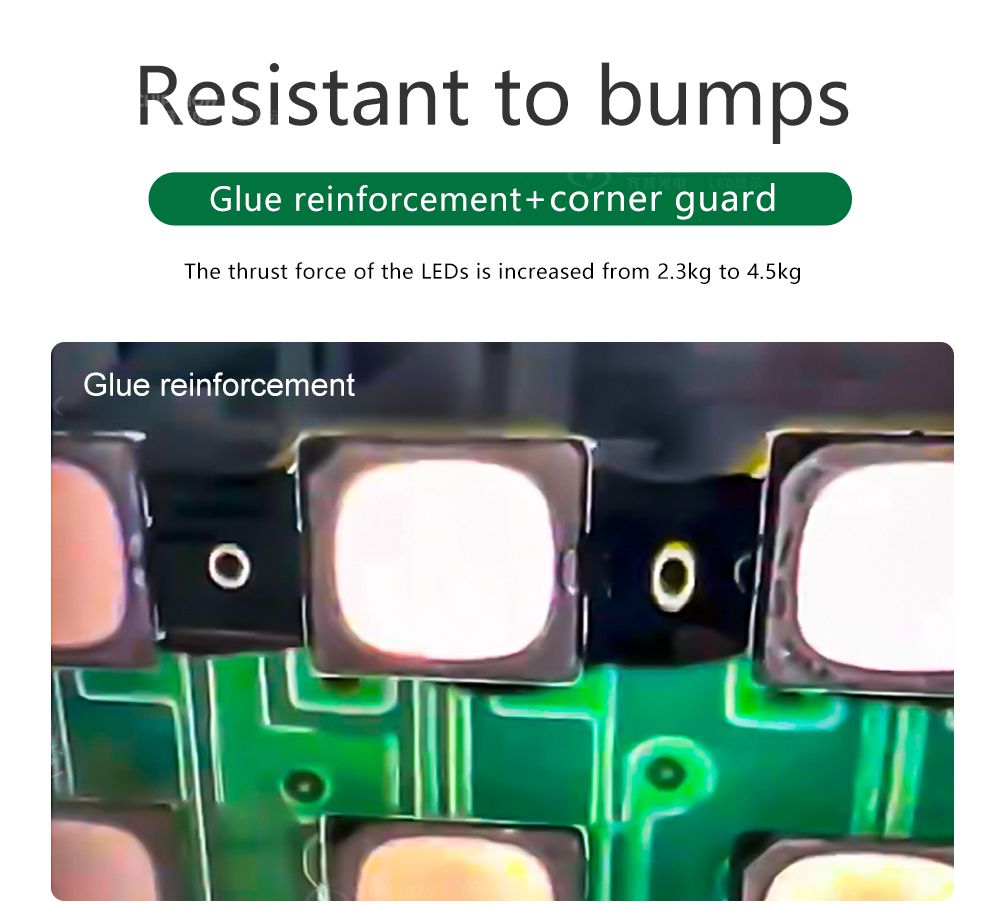

4 The LED modules adopt soft PCB boards, so the arc surface of modules always remains smooth;

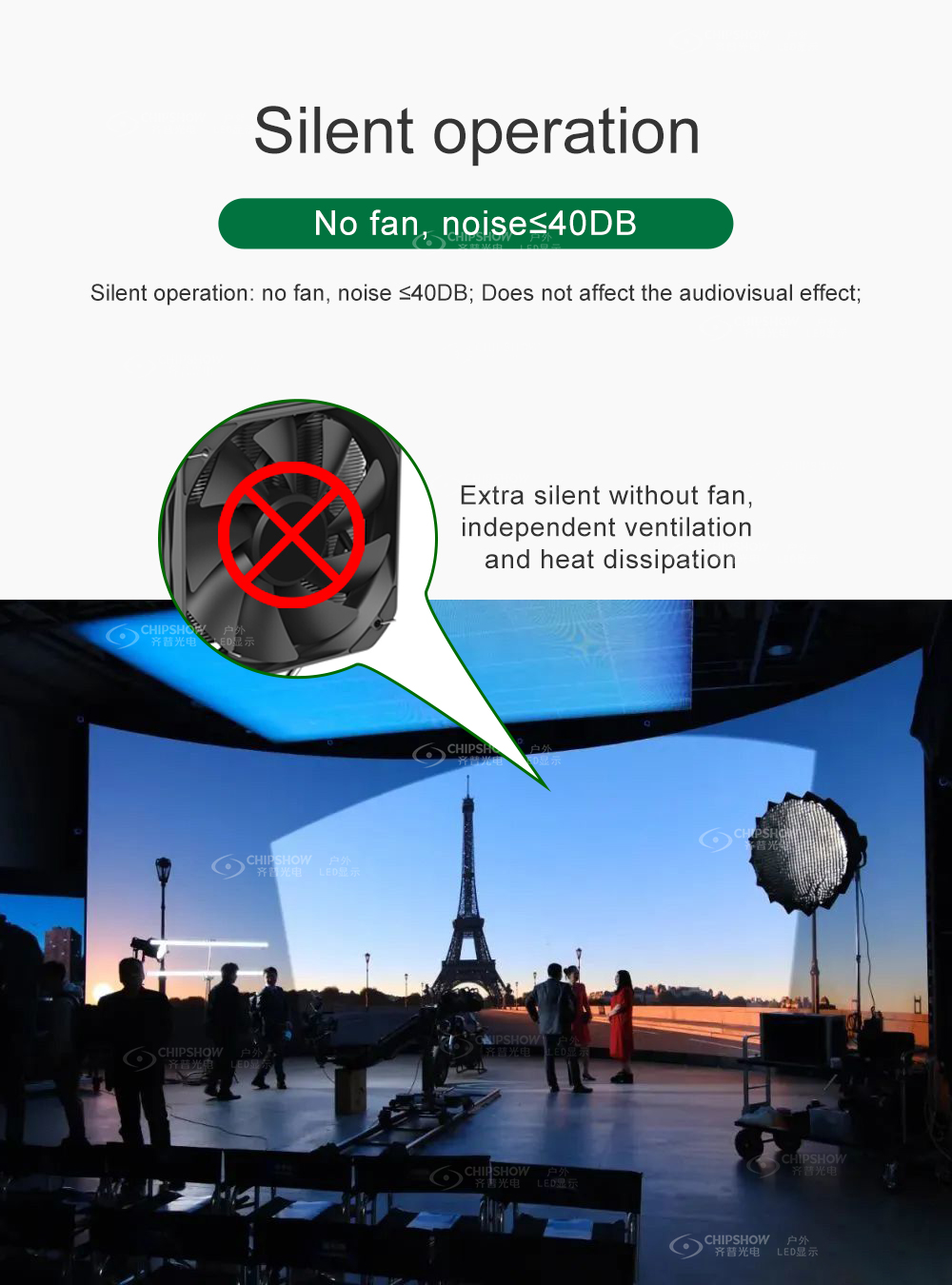

5 The modules adopt a no-fan design, and the working noise is under 40DB; so you do not have to worry that the audiovisual effects will be impacted when the LED display screen is working;

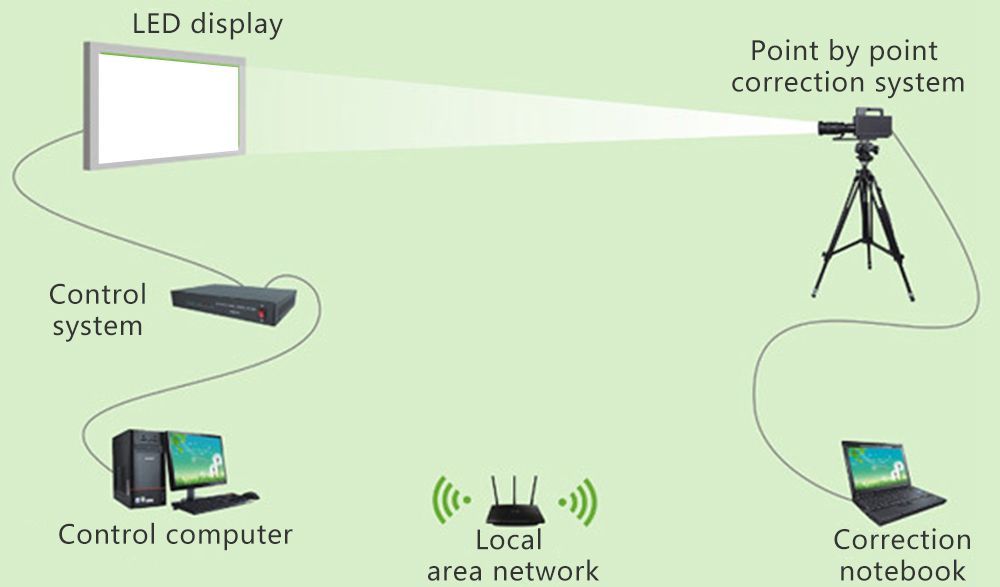

6 The pixels are adjusted point by point to achieve white balance; this ensures the uniformity and consistency of the generated pictures;

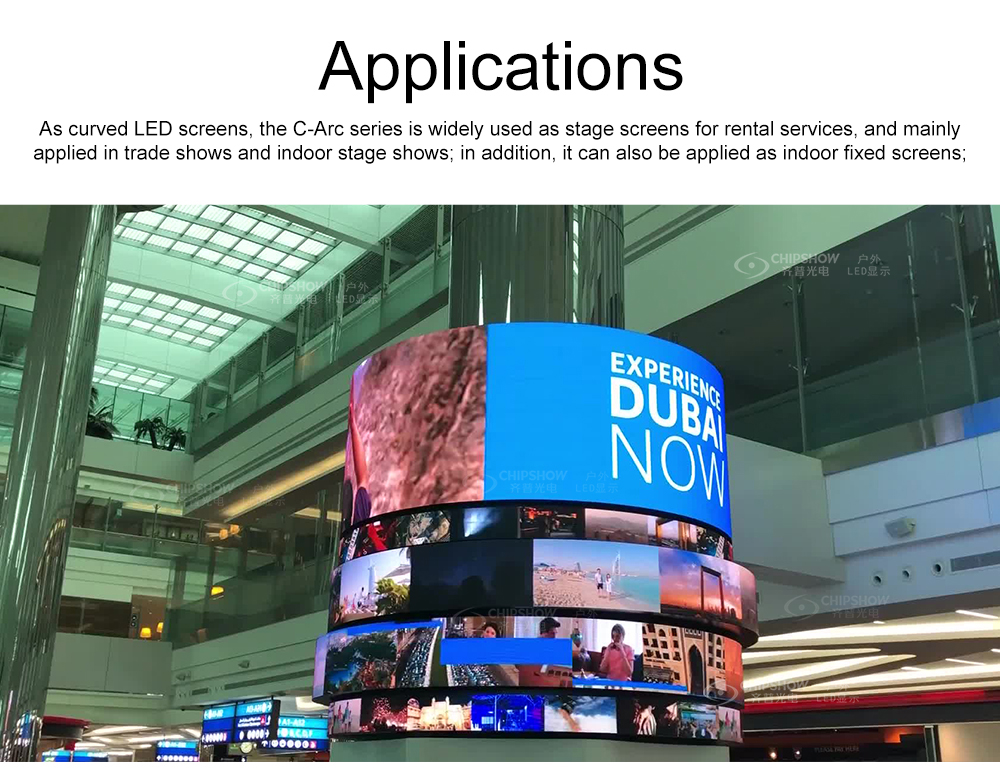

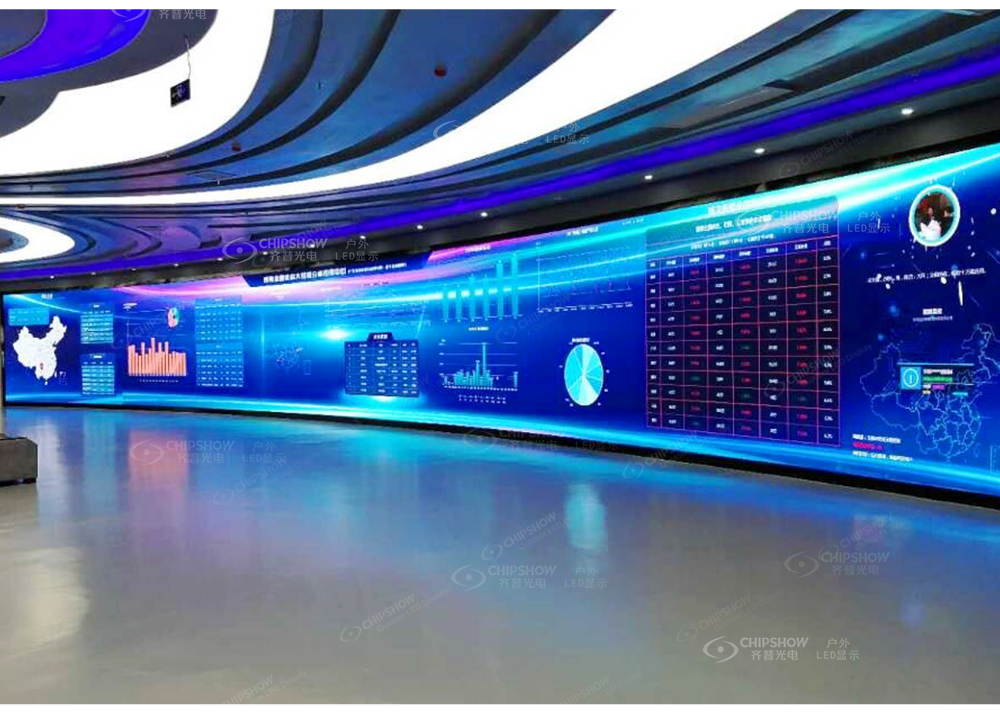

7 One typical use for the C-Arc series is to form a round corner screen (required number of cabinets: 3) and a ring-shaped screen (required number of cabinets: 12);

Chipshow has more than 20 years of experience in manufacturing LED display screens. If you feel the need to know more about Chipshow, you might check the page:  Chipshow - Professional Indoor & Outdoor LED Display Solutions;
